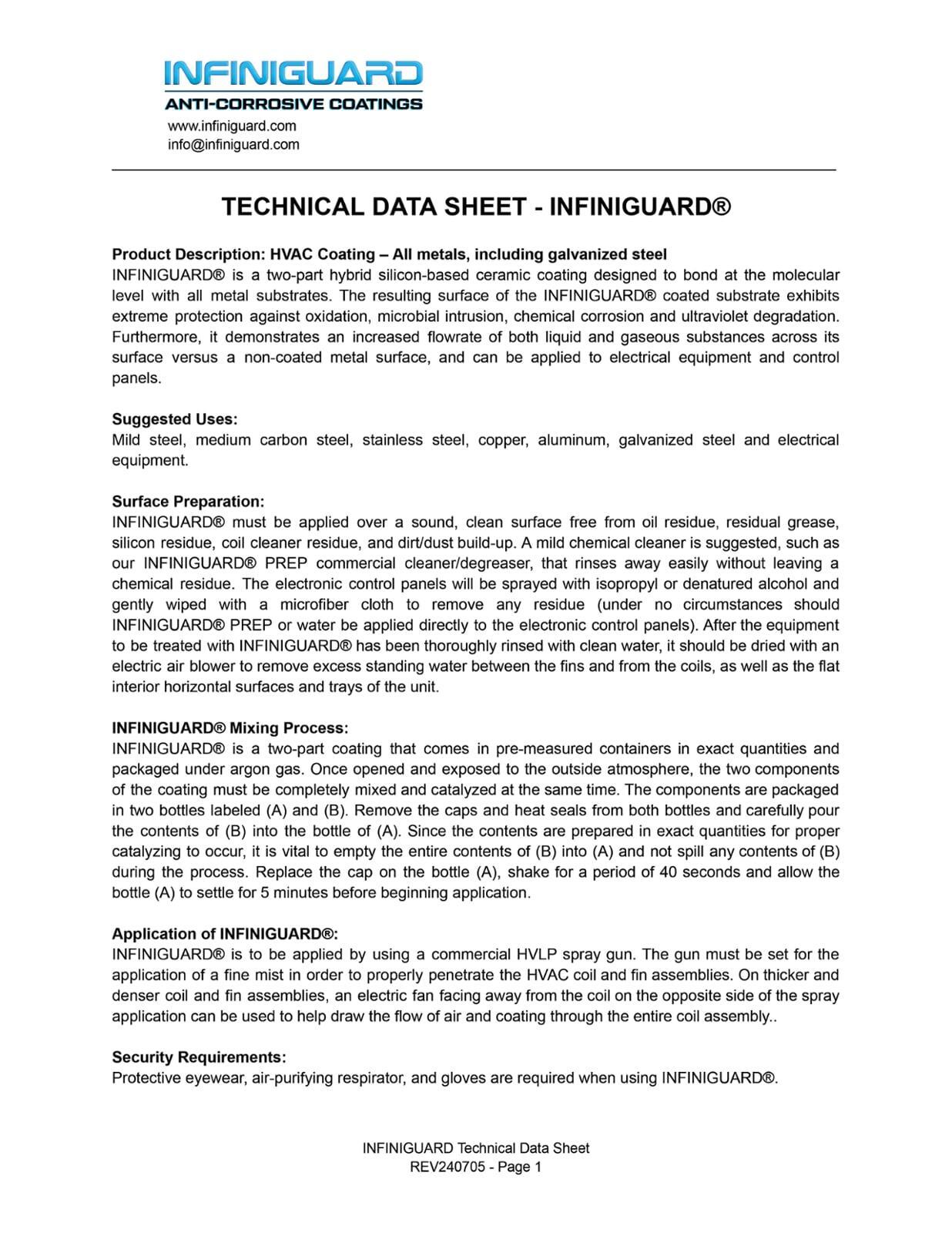

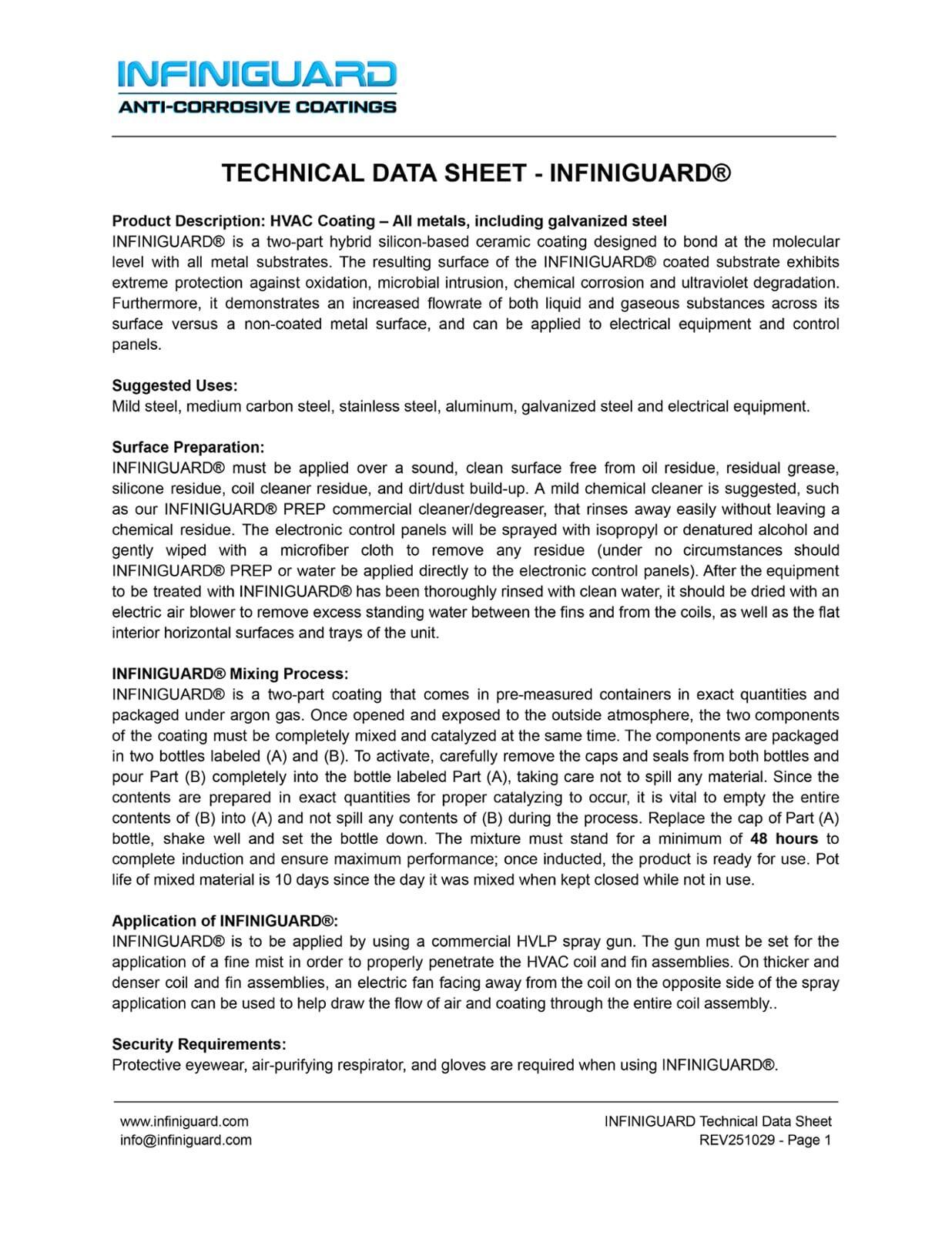

Technical Data

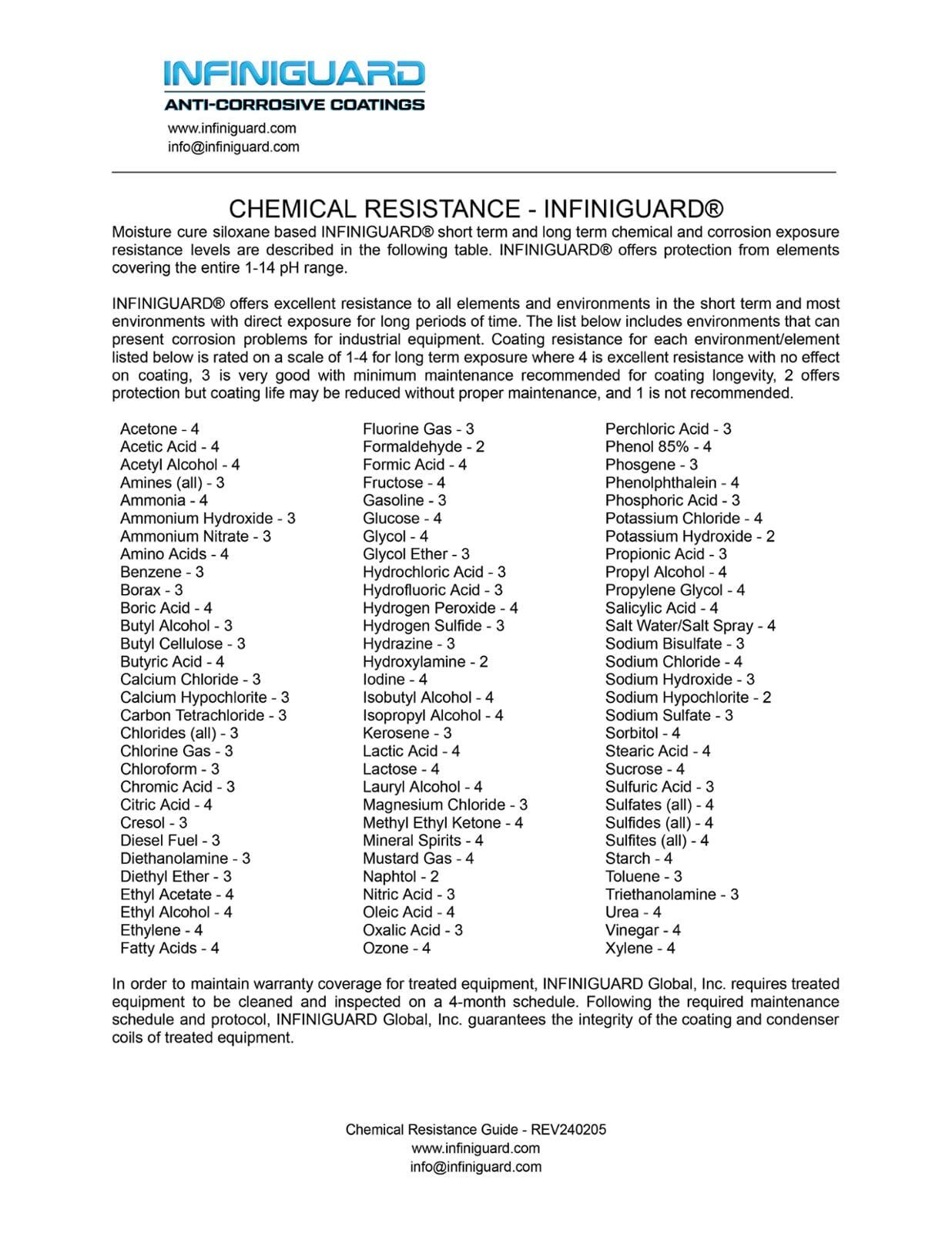

Cover image of INFINIGUARD® Chemical Resistance Guide — Chemical Resistance Guide

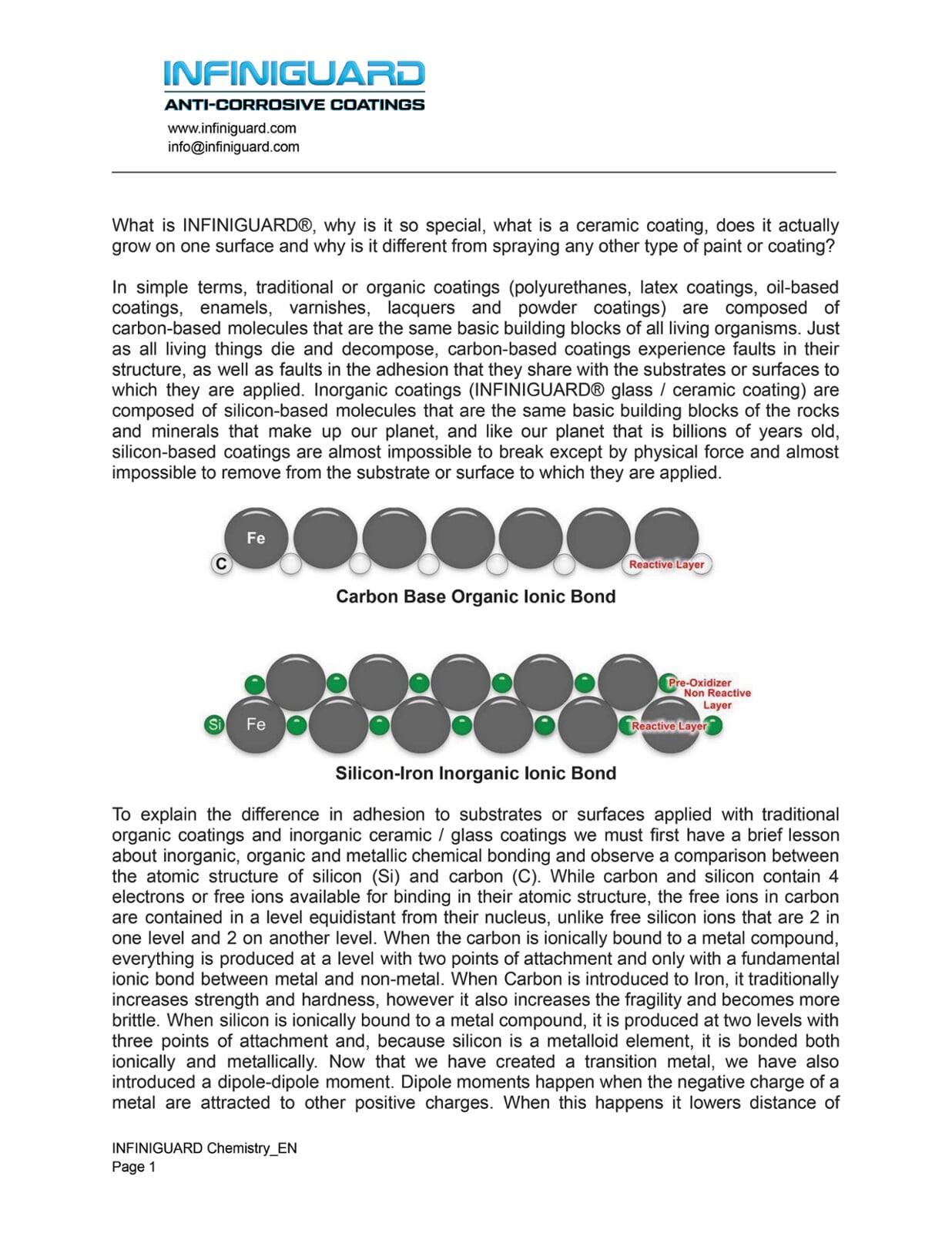

Cover image of INFINIGUARD® Chemical Bonding Description — Chemical Bonding Description

Third Party Testing Results

INFINIGUARD®-coated lab samples show virtually no coating degradation after exposure to 3 times the industry standard for cyclical corrosion.

A typical duration for SAE J2334 is 40 cycles per most John Deere and Caterpillar (CAT) specifications. Following exposure to 120 cycles (120 days), INFINIGUARD® had 1 panel with a maximum of 3 percent corrosion. In comparison, the competitor’s panels had a minimum of 8% corrosion.

After 12,000 hours of salt spray exposure, INFINIGUARD® exhibited far less oxidation and coating degradation when compared to the competitors.

INFINIGUARD® coating subjected to the exposure of 12,000hrs at a thickness of 12 micron shows only minor visible defects. The majority of automobile frames and components are coated with e-coat around the 20-40 microns thick and rarely last longer than ~5000hrs in salt spray.

-Assured Testing Services

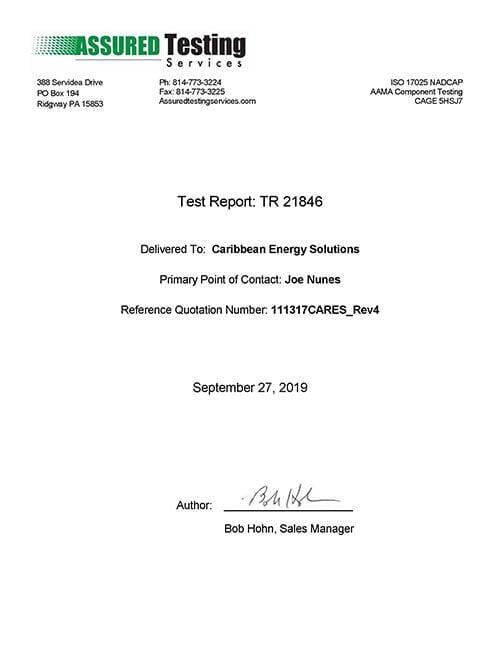

Cyclic Corrosion Testing for INFINIGUARD® coating PDF — Cyclic Corrosion Testing PDF

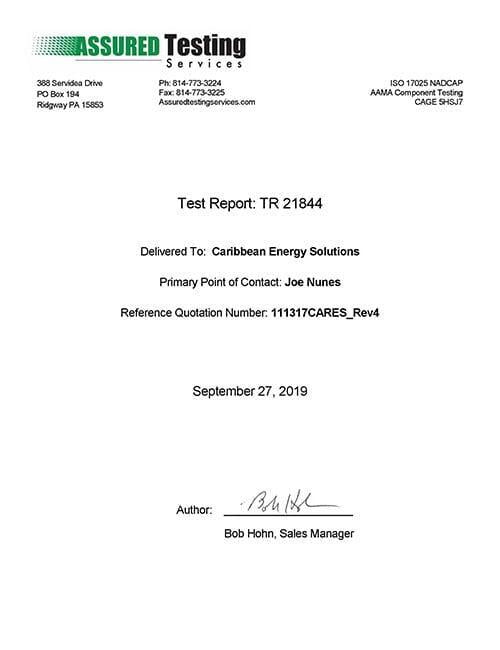

Salt Spray Testing for INFINIGUARD® coating PDF — Salt Spray Testing PDF

FDA Testing for INFINIGUARD® coating PDF — FDA Testing PDF

5 Year Standard Warranty

Five year warranty badge with gold chrome border

Caribbean Energy Solutions LLC (CES) and its affiliates warrant INFINIGUARD® HVAC coatings to be free of defects as long as they are catalyzed and applied by a certified CES applicator that has been certified and trained by CES, the product is applied in its entirety following the guidelines set forth by CES, and the HVAC equipment treated is visually inspected and cleaned on a 4 month schedule following the maintenance guidelines established by CES. Cleaning of the coated unit shall be with water only. Maintenance shall be performed in accordance with the “Maintenance Procedures for INFINIGUARD® Coated Units and Coils” document included in your warranty package. Deviation from the maintenance requirements will void the 5 year warranty. Please feel free to contact us with any questions pertaining to the warranty of our coating.
